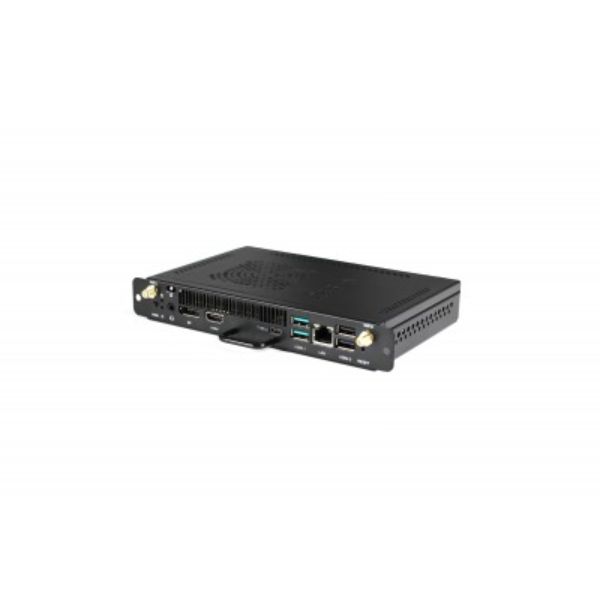

SP-PI7C82IS(without system)

HIỆU NĂNG

Processor: Intel® Alder Lake-H i7-12650H, 4.70 GHz
Chip: SOC
BIOS: AMI UEFI BIOS
Integrated Graphics Card: Intel® UHD Graphics for 12th Gen Intel® Processors
Sound Card: Realtek ALC897
Memory: 8 GB
Disk: 256 GB
Wireless: 1 × 2230 CNVI AX101, Wi-Fi/BT Module
Button: Front, 1 × power button, 1 × resetting button (recessed socket)
Operating System: Supports Windows 11 Pro or without any operating system

CPU

Number of Cores: 10
Number of Threads: 16
Level 3 Cache: 24 MB

CỔNG KẾT NỐI

Power: 1 × DC IN
Network Port: 1 × RJ-45 (10/100/1000 Mbps)
USB: 2 × USB 3.1, 2 × USB 2.0
Type-C Port: 1 × USB 3.1 Type-C
DisplayPort: 1 × DP 1.2 out, Max. 4K/60Hz
HDMI: 1 × HDMI 1.4 out, Max. 4K/30Hz
Audio Port: 1 × Line-out and MIC-In, 2-in-1 Connector
Extension Interface: 1 × 80 pin JAE port

NGUỒN ĐIỆN

Operating Voltage: 12–19 VDC
Standby Power Consumption: 0.8 W
Power Consumption:

• Typ: 53 W
• Max: 58.8 W

MÔI TRƯỜNG

Operating Temperature: –5 °C to +45 °C
Operating Humidity: 10%–90%, non-condensing
Storage Temperature: –20 °C to +70 °C
Storage Humidity: 10%–90%, non-condensing

CẤU TRÚC

Casing Material: SGCC
Product Dimensions: 119 × 180 × 30 mm
Packaging Dimensions: 254 × 196 × 77 mm
Net Weight: 0.75 kg
Gross Weight: 0.95 kg
Casing Color: Black

PHỤ KIỆN

2 × antennas
2 × M3 screws
1 × desiccant
1 × user’s manual

CHỨNG NHẬN

CE, Energy Star
