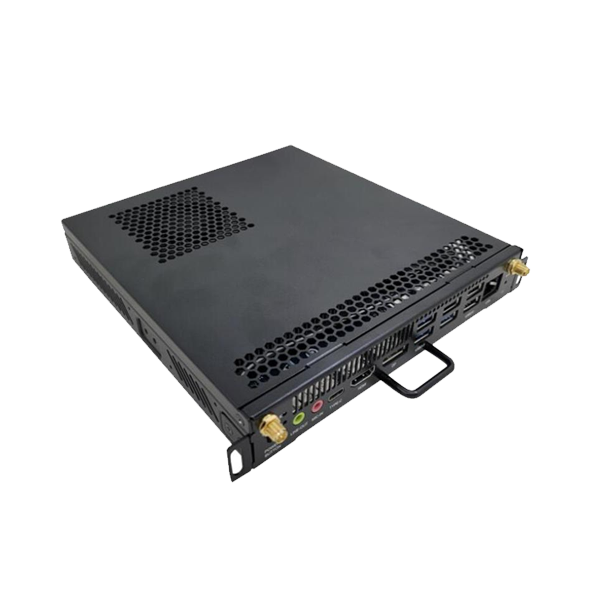

Mô-đun OPS
- Đồ họa Intel® Iris® Xe, hỗ trợ độ phân giải 4K
- Hỗ trợ khởi động nhanh đĩa hệ thống M.2 nvme
- Hỗ trợ 4 cổng USB 3.0, 2 cổng USB2.0, 1 cổng HDMI, 1 giao diện DP, 1 cổng Type-C
- Hỗ trợ bộ nhớ kênh đôi
- Hỗ trợ Wi-Fi IEEE 802.11 a/b/g/n/ac
Built-In System
- Operation System: WIN10 SAC
- Processor: Intel® Core, i5 11th
- CPU Clock Speed: 3.2GHz
- Memory: 4G * 2
- NIC: Integrated 10/100/1000M Adaption
- Graphics: Intel® Iris® Xe Graphics
- Platform Architecture: Intel® Tiger Lake
- Storage: 256G
- Cooling System: Single Brass & Single Fan
Interface
- Network Interface: RJ45 * 1
- Data Transmission Interface: Bluetooth 4.2 / USB 3.0 * 4；USB 2.0 * 2；Type-C * 1
- Video Output: HDMI * 1; DP * 1
- Antenna: 2
Power
- Standby Consumption: 0.5W
- Input Voltage: 12V-19V DC
- Max. Consumption: 95W
General
- Product Dimensions (W × H × D): 195×30×180mm
- Package Dimensions (W × H × D): Carton with a single module : 308 * 80 * 278 mm / Carton with five modules : 420 * 298 * 320 mm
- Net Weight: About 1.22kg
- Gross Weight: Carton with a single module : about 1.36 kg / Carton with five modules : about 7.50 kg
- Color: Black
Working Environment
- Working Temperature: 0°C - 40°C
- Working Humidity: 10%-90%
- Storage Temperature: -20°C - 60°C
- Storage Humidity: 10%-90%
