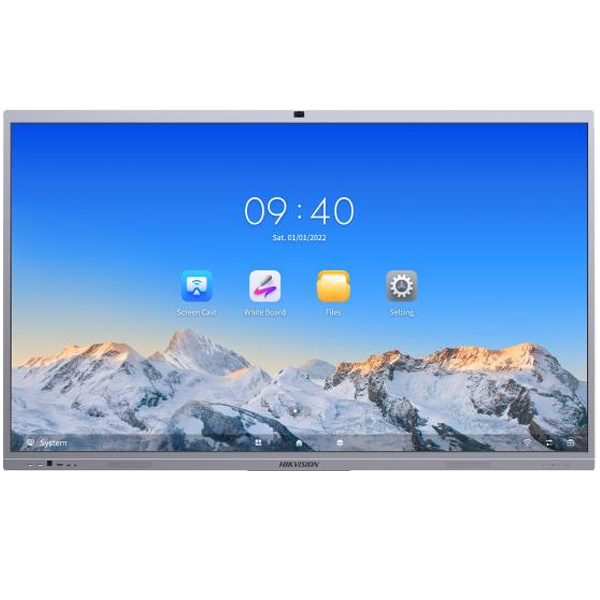

Màn hình tương tác cao cấp tích hợp camera 86inch HIKVISION DS-D5C86RB/B

Product Model
- Product Model: DS-D5C86RB/B

Display
- Screen Size: 86 inch
- Backlight: DLED
- Pixel Pitch: 0.1645（H）× 0.4935（V）mm
- Resolution: 3840 × 2160 @60 Hz
- Brightness: 400 cd/m² （Typ.）
- Color Depth: 10 bit
- Display Color: 1.07G
- Response Time: 6 ms
- Panel Type: VA
- Contrast Ratio: 5000:1 (Static)/ 30,000:1 (Dynamic)

- Color Gamut: 72% NTSC（CIE1931）（Typ.）
- Refresh Rate: 60 Hz
- Viewing Angle: 178°(H)/178°(V)
- Aspect Ratio: 16:9
- Surface Hardness: 9H
- Surface Glass: Anti-Glare Glass
- Surface Haze: 25%Haze
- Glass Bonding Method: Zero Lamination
- Display Area: 1895.04mm x 1065.96mm
- Working Duration: 7 x 16H
- Transmittance: 88% ± 3
- Lifespan: 50,000 hours

Touch
- Type: Infrared Touch Screen
- Touch Point: 45 point multi-touch
- Touch Response Time: ＜ 5 ms
- Minimum Touch Object: ≥ 2 mm
- Touch Precision: ± 1 mm (≥ 90% touching area)
- Touch Resolution: 32768 × 32768

Built-In System
- Operation System: Android 13.0
- Memory: 8 GB
- Built-In Storage: 128 GB
- Processor: Quad-core Cortex-A76 × 4（2.4GHz）and quad-core Cortex-A55 × 4（1.8GHz）
- GPU: Mali-G610 MC4
- HDCP Version: 2.3

Camera
- Pixel: Pixel 48MP for Photos & 8 MP for Video
- Camera Function: Support intelligent switching between Android system, OPS, and PC.
- Field Angle: 120°(diagonal), 110°(horizontal), 75°(vertical)
- Distortion: ≤2.5%
- Camera Resolution Ratio: Up to 4K

Microphone
- Specification: Omni-directional 8-array layout
- Mic Function: Echo reduction and smart noise-cancellation
- Voice Distance: 12 m
- Sampling Rate: 32 K
- Mic Sampling Rate: 16 bit

Internal Function
- Loudspeaker: Built-in 2 ×20 W+25W loudspeaker;
- Bluetooth: Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.1
- NFC: Support screen mirroring by Android phones
- Light Sensor: Yes
- Image Processing Technology: Support 3D digital noise reduction, face detection, automatic white balance, automatic purple edge removal, automatic defogging；support shadow correction and distortion correction for lens.
- Audio Processing Technology: Support dereverberation, adaptive noise reduction, adaptive non-stationary noise reduction, adaptive echo cancellation, automatic gain control, automatic electrical level control, sound source localization, speech dynamic detection, digital beam forming, speech detection.

Interface
- Video & Audio Input: HDMI In （HDMI 2.0）× 3, VGA In x 1, DP In （DP 1.2）× 1, Audio In × 1
- Video & Audio Output: HDMI Out （HDMI 2.0）× 1, Audio Out × 1, SPDIF Out × 1
- Control Interface: TOUCH-USB 3.0 × 3, RS232 × 1
- Network Interface: LAN (1000 Mbps) × 2 / WIFI AP&Station，2.4G/5G / IEEE 802.11 a/b/g/n/ac  2x2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP

- Data Transmission Interface: USB 3.0 × 4, USB 2.0 × 1, Type-C × 2 (Type-C supports USB 2.0, DP 1.2, and charging functions; side charging 15 W, front charging 65 W)

Power
- Power Supply: 100 to 240 VAC, 50/60 Hz
- Standby Consumption: ≤ 0.5 W
- Average Consumption: < 205W

General
- VESA: 800 mm × 600 mm （4 × M8-25 mm）
- Product Dimensions: 1960.5 mm × 1173.7 mm × 82.5 mm
- Accessory: Wall mount bracket, hook, user manual, touch writing pen, packing list, 3M touch USB cable, 3M HDMI cable (2.0), 1.5m power cable (European standard), Bluetooth remote control.
- Package Dimensions (W × H × D): 2197 mm × 284 mm × 1376mm
- Net Weight: 65.13 kg
- Gross Weight: 82.6 kg

Working Environment
- Working Temperature: 0 °C to 40 °C (32 °F to 104°F)
- Working Humidity: 10%~90% RH
